When using nip rollers in manufacturing to press two or more sheets of material together to form a laminated product, it’s important to maintain standards and pressure distribution. Enter: nip roller solutions from XSENSOR, which allow you to measure pressure distribution without disrupting roller balance.

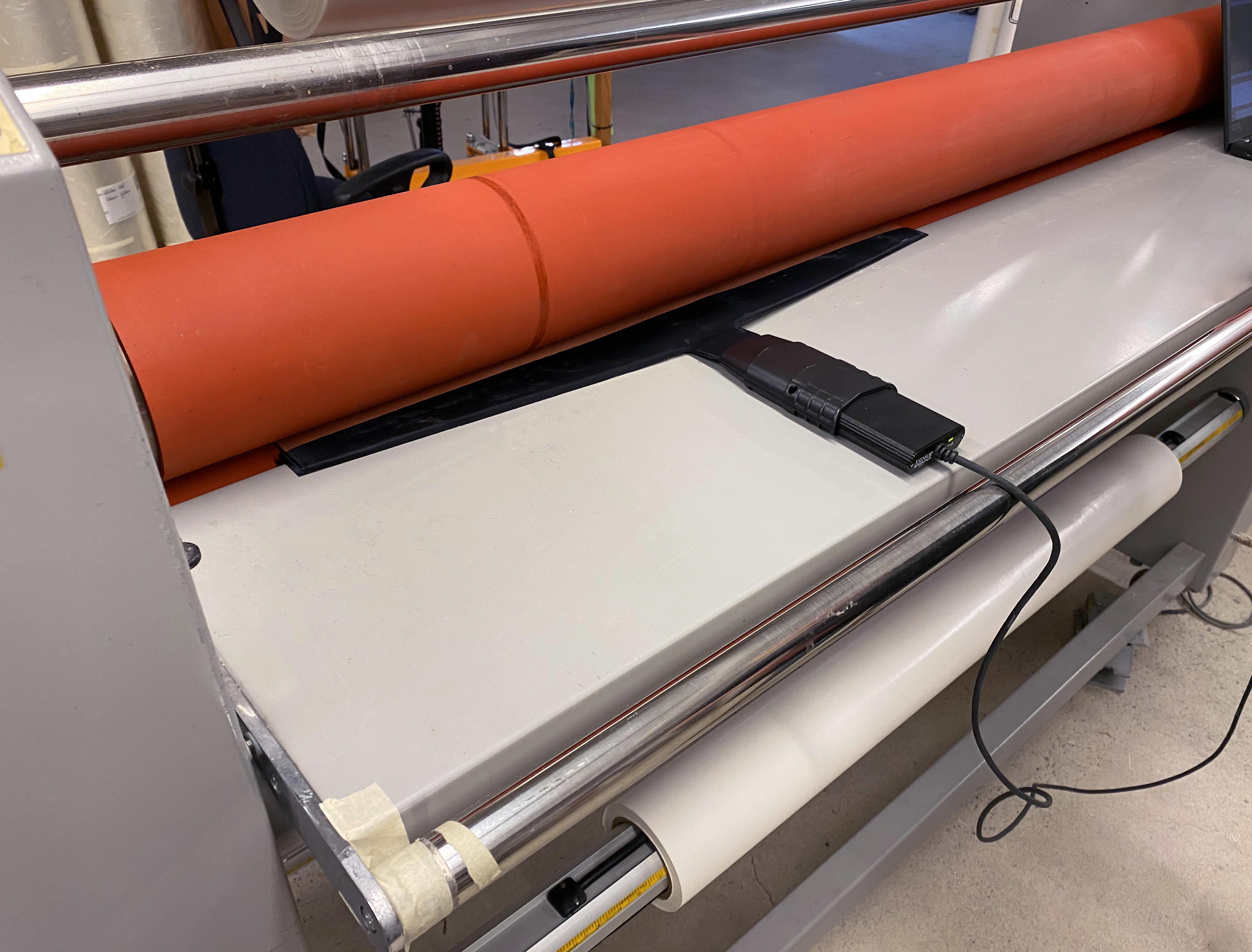

XSENSOR's Nip Roller Sensor between two rollers.

Nip Roller Solutions for Performance

Finding an accurate measurement and visualisation of the footprint of your nip roller is essential, which is why being able to capture both static and dynamic footprints is so important. If you can reach towards repeatable, reliable measurements with our process control & verification sensors, you can truly and totally measure roller balance effectively.

When using and developing nip roller technology, you need continuous thickness and compressibility across the entire area, which is where our nip roller solutions come into play. This way, you can gather accurate measurements of pressure and visualisation of nip roller footprints.

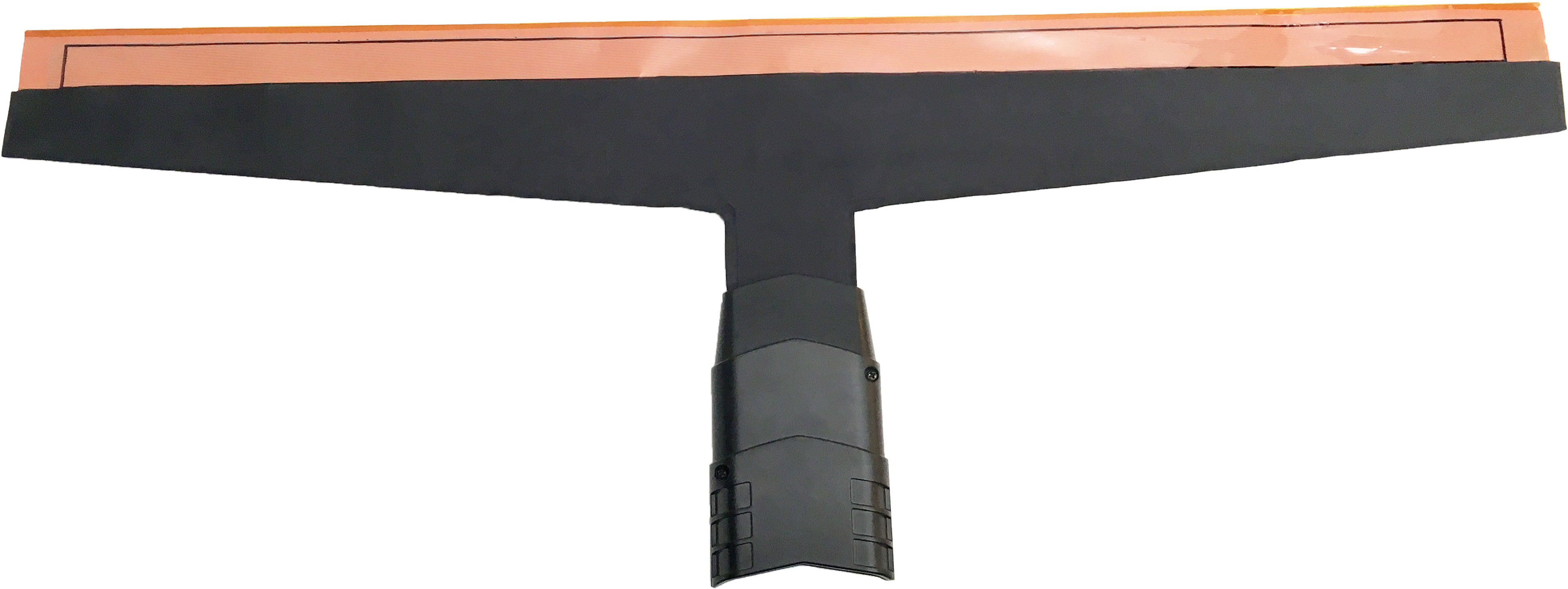

XSENSOR's Nip Roller Sensor.

Nip Roller Solutions Specifications & Performance

With a proprietary, diamond-shaped design to ensure uniform sensor thickness, our nip roller technology maximises process control and verification sensors for accurate footprints and visibility. Our nip rolling solutions help to eliminate electronic noise, as well.


Accurate, repeatable pressure sensors measure with ±5% accuracy — maintains accurate measurements for thousands of cycles without recalibration.
High spatial resolution with sensel size to 1.2 mm x 1.2 mm provide pressure details of the smallest surface features.
Fast sensor response and sensor resolution of 0.01 psi ensure even the smallest variation in interface pressures are captured.

Ultra-thin sensing area, our LX sensors are under 1 mm and are conformable measuring contoured surfaces accurately.

Comprehensive software toolkit for analysis or direct data acquisition options.

CATALOG

Product Catalog

Wondering how our nip roller optimization technology is built to provide insights? Find out more about XSENSOR’s nip roller optimization solutions and specifications inside our comprehensive product catalogue.

Download Catalog
Cover of XSENSOR's Test & Measurement Product Catalog.

Need more information? Let's talk.

Need more information on our nip roller optimization solutions (or anything else)? We’re here to help you find the best solution for your needs.



Book a Demo
